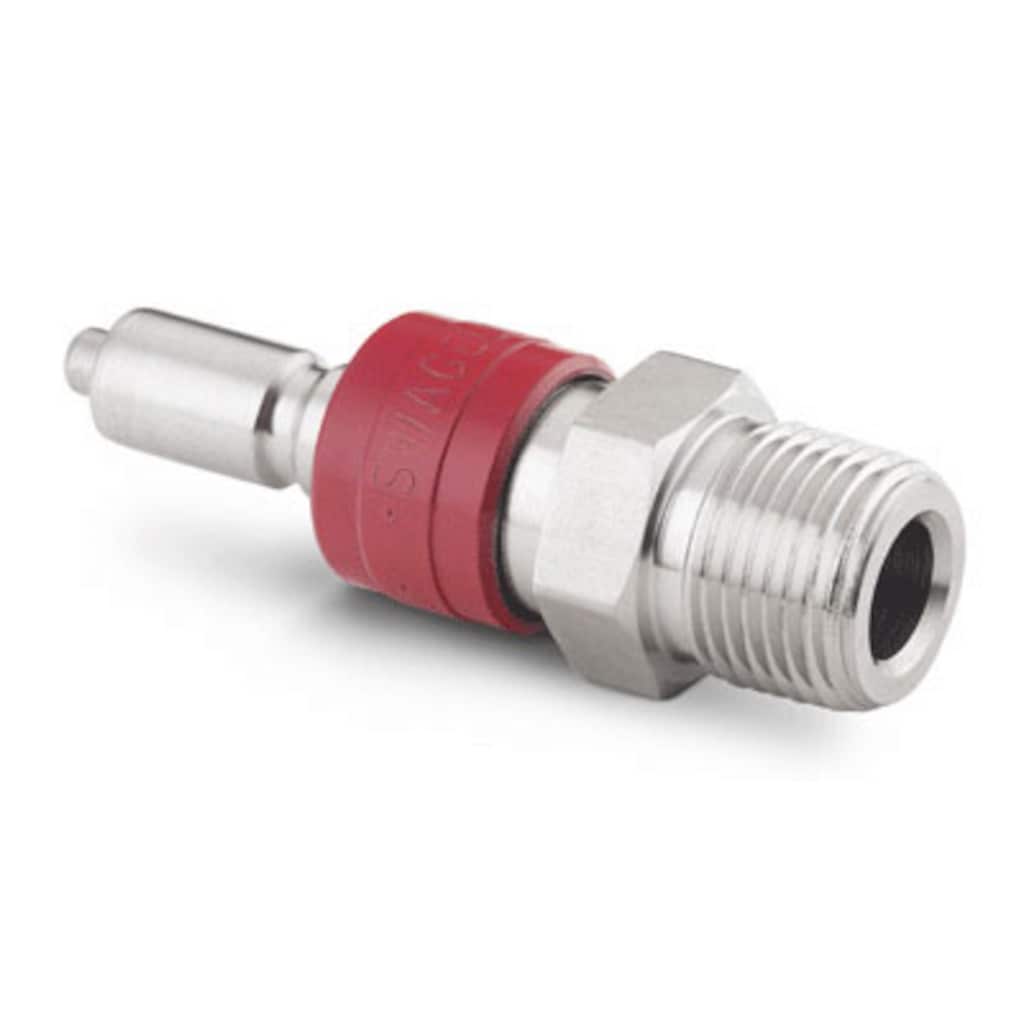

밸브가 있는 스테인리스강 계장용 퀵 코넥트 스템, 0.5Cv, 1/4인치 수나사 NPT |
||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
规格
DESO 管茎对于需要频繁连接，夹气和溢出最小化的应用场合，使用世伟洛克快速接头可进行快速、方便的连接。 登录或注册查看价格 联系人如果您对本产品有疑问，请联系您当地的授权销售与服务中心。他们还可以告诉您有关支持服务的信息，帮助您获得最大的投资收益。
安全的产品选择：
请务必查看全部产品目录内容以保证系统设计者和用户进行安全的产品选择。选择产品时，必须考虑总体系统设计以保证获得安全的、无故障的性能。功能、材料兼容性、充分的额定值、正确的安装、使用和维护是系统设计者和用户的重要责任。 警告: 스웨즈락의 튜브 피팅 연결구를 포함하여 이러한 제품은 산업 설계 기준에 따라 제조되지 않으므로 스웨즈락의 제품 및 부품을 타 제조업체의 제품 및 부품과 혼합하거나 혼용하여 사용하지 마십시오.
|
请务必查看全部产品目录内容以保证系统设计者和用户进行安全的产品选择。选择产品时，必须考虑总体系统设计以保证获得安全的、无故障的性能。功能、材料兼容性、充分的额定值、正确的安装、使用和维护是系统设计者和用户的重要责任。
警告: 스웨즈락의 튜브 피팅 연결구를 포함하여 이러한 제품은 산업 설계 기준에 따라 제조되지 않으므로 스웨즈락의 제품 및 부품을 타 제조업체의 제품 및 부품과 혼합하거나 혼용하여 사용하지 마십시오.
目录
DESO 管茎
对于需要频繁连接，夹气和溢出最小化的应用场合，使用世伟洛克快速接头可进行快速、方便的连接。
Features: No twisting, turning, or wrenching necessary; Single-end shutoff, double-end shutoff, and full-flow models
Features: Step-by-step identification procedure for threads and end connections.
Good practices for operation of Swagelok quick-connects.
规格
SS-QC6-D-4PM — 밸브가 있는 스테인리스강 계장용 퀵 코넥트 스템, 0.5Cv, 1/4인치 수나사 NPT
| 属性 | 值 |
|---|---|
| 阀体材料 | 316 스테인리스강 |
| 清洁工艺 | 표준 세정 및 포장(SC-10) |
| 接头 1 尺寸 | 1/4인치 |
| 接头 1 类型 | 수나사 NPT |
| Cv 最大值 | 0.5 - 표준 또는 역류 몸체와 체결할 경우 |
| 润滑剂 | 다우 코닝 111 |
| O 型圈材料 | 탄화플루오르 FKM |
| 最高温度时连接的压力额定值 | 250PSIG @ 400°F /17.2BAR @ 204°C |
| 室温时连接的压力额定值 | 1500PSIG @ 70°F /103BAR @ 21°C |
| 室温时断开的压力额定值 | 250PSIG @ 70°F /17.2BAR @ 21°C |
| 压力温度额定值（连接和断开） | 250PSIG @ 70°F /17.2BAR @ 21°C |
| 系列 | QC6 |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
类似产品
|
零部件号
|
阀体材料
|
接头 1 尺寸
|
接头 1 类型
|
接头 2 尺寸
|
接头 2 类型
|
|
|---|---|---|---|---|---|---|
| B-QC4-D-400 | Brass | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| B-QC4-D-4PF | Brass | 1/4 in. | Female NPT | - | - | 查看产品 |
| B-QC4-D-4PM | Brass | 1/4 in. | Male NPT | - | - | 查看产品 |
| B-QC4-D-6M0 | Brass | 6 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| B-QC6-D-4PF | Brass | 1/4 in. | Female NPT | - | - | 查看产品 |
| B-QC6-D-4PM | Brass | 1/4 in. | Male NPT | - | - | 查看产品 |
| B-QC6-D-600 | Brass | 3/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| B-QC6-D-6PM | Brass | 3/8 in. | Male NPT | - | - | 查看产品 |
| B-QC8-D-810 | Brass | 1/2 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| B-QC8-D-8PF | Brass | 1/2 in. | Female NPT | - | - | 查看产品 |
| B-QC8-D-8PM | Brass | 1/2 in. | Male NPT | - | - | 查看产品 |
| SS-QC4-D-200 | 316 Stainless Steel | 1/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-2PF | 316 Stainless Steel | 1/8 in. | Female NPT | - | - | 查看产品 |
| SS-QC4-D-2PM | 316 Stainless Steel | 1/8 in. | Male NPT | - | - | 查看产品 |
| SS-QC4-D-400 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-400K1 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-400K2 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-400K3 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-400K4 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-400K5 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-400KZ | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-4MT | 316 Stainless Steel | 1/4 in. | Male ISO Tapered Thread | - | - | 查看产品 |
| SS-QC4-D-4PF | 316 Stainless Steel | 1/4 in. | Female NPT | - | - | 查看产品 |
| SS-QC4-D-4PFK5 | 316 Stainless Steel | 1/4 in. | Female NPT | - | - | 查看产品 |
| SS-QC4-D-4PFKZ | 316 Stainless Steel | 1/4 in. | Female NPT | - | - | 查看产品 |
| SS-QC4-D-4PM | 316 Stainless Steel | 1/4 in. | Male NPT | - | - | 查看产品 |
| SS-QC4-D-4PMK2 | 316 Stainless Steel | 1/4 in. | Male NPT | - | - | 查看产品 |
| SS-QC4-D-4PMK3 | 316 Stainless Steel | 1/4 in. | Male NPT | - | - | 查看产品 |
| SS-QC4-D-4PMKZ | 316 Stainless Steel | 1/4 in. | Male NPT | - | - | 查看产品 |
| SS-QC4-D-6M0 | 316 Stainless Steel | 6 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-D-6M0K1 | 316 Stainless Steel | 6 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-D-10M0 | 316 Stainless Steel | 10 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-D-4PF | 316 Stainless Steel | 1/4 in. | Female NPT | - | - | 查看产品 |
| SS-QC6-D-600 | 316 Stainless Steel | 3/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-D-600K1 | 316 Stainless Steel | 3/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-D-600K2 | 316 Stainless Steel | 3/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-D-600K3 | 316 Stainless Steel | 3/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-D-6PF | 316 Stainless Steel | 3/8 in. | Female NPT | - | - | 查看产品 |
| SS-QC6-D-6PM | 316 Stainless Steel | 3/8 in. | Male NPT | - | - | 查看产品 |
| SS-QC6-DC-6HC | 316 Stainless Steel | 3/8 in. | Hose Connector | - | - | 查看产品 |
| SS-QC8-D-12M0 | 316 Stainless Steel | 12 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC8-D-810 | 316 Stainless Steel | 1/2 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC8-D-810K1 | 316 Stainless Steel | 1/2 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC8-D-8MT | 316 Stainless Steel | 1/2 in. | Male ISO Tapered Thread | - | - | 查看产品 |
| SS-QC8-D-8PF | 316 Stainless Steel | 1/2 in. | Female NPT | - | - | 查看产品 |
| SS-QC8-D-8PM | 316 Stainless Steel | 1/2 in. | Male NPT | - | - | 查看产品 |
