Straight Pattern, with Actuator
Isolate system fluids and achieve reliable, leak-tight performance with Swagelok bellows valves which use a packless design and a welded seal. Bellows valves are ideal for applications where the seal to atmosphere is critical, and we offer multiple options for general and high-purity service.
Swagelok® B series bellows-sealed valves are available in a range of configurations to meet a variety of system needs. Gasketed and weld body-to-bellows seals, shutoff and regulating stem tips, and several end connections are offered.
This document specifies guidelines used by Swagelok Company for producing stainless steel products intended for photovoltaic (PV) applications.
The Swagelok® 3-valve manifold uses bellows-sealed valves for systems with difficult fluid containment requirements. Features: 316 stainless steel bodies, Swagelok B or U series bellows valves for general or severe service, pipe fitting, flange, and Swagelok tube fitting end connections
Features: Limits access to manually actuated valves;Lockout accessory enables compliance with OSHA Lockout/Tagout, Standard 29 CFR Part 1910.147, Control of Hazardous Energy Bright safety orange color promotes high visibility. Other colors are available.
Bellows Kits, Stem Tip/Adapter Kits, bellows/Stem/Stem Tip/Adapter Kits, Gasket Kits for Swagelok® bellows-sealed valves
规格

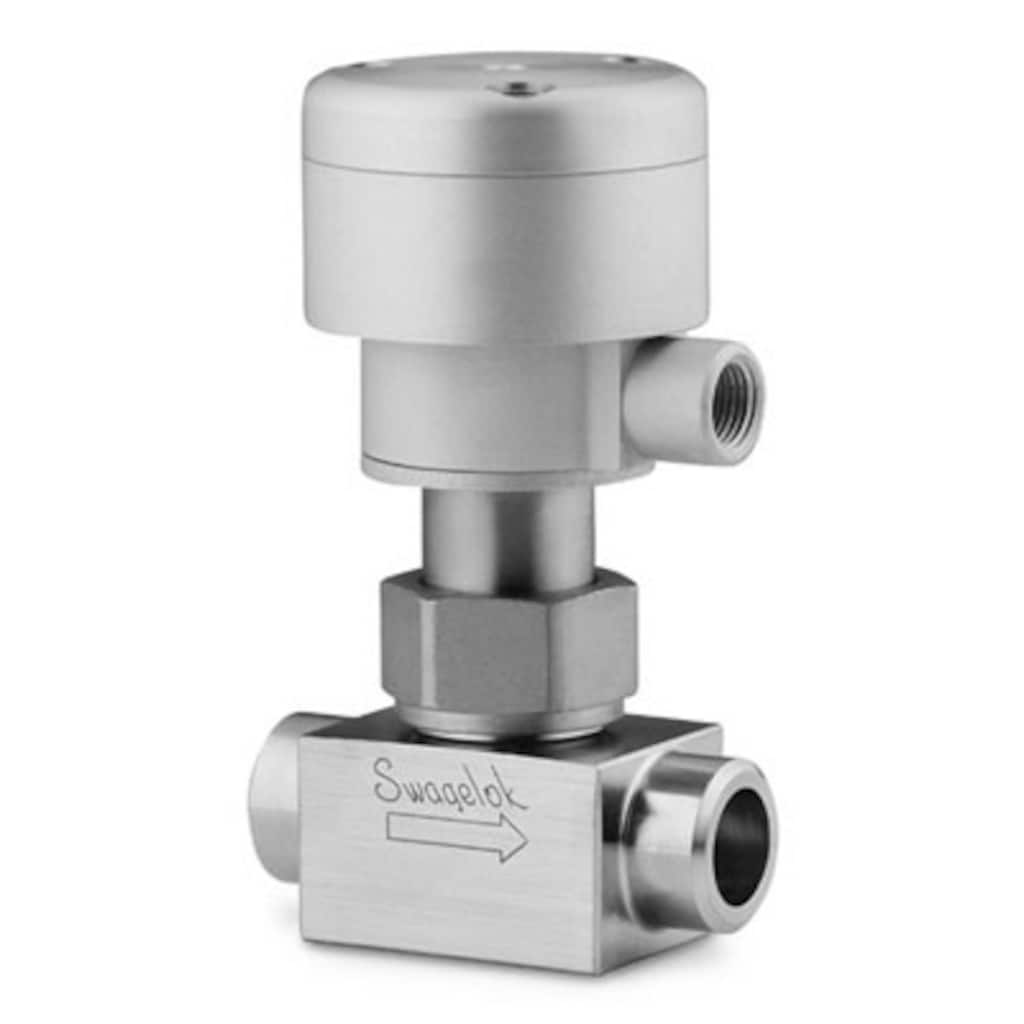

SS-6BK-TW-1C — Stainless Steel Bellows Sealed Valve, Gasketed, PCTFE Stem Tip, 3/8 in. TSW and 1/2 in. TBW, SC-11 Cleaned, NC Actuator
| 属性 | 值 |
|---|---|
| Actuator Model | 1 系列 |
| Actuator Operation Mode | 常闭弹簧回复 |
| Actuator Type | 气动 |
| Bellows Material | 321 不锈钢 |
| Body Material | 316 不锈钢 |
| Body Seal | 带软阀座的垫圈 |
| Cleaning Process | 特殊清洁与包装 (SC-11) |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | 卡套管承插焊接 |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | 卡套管对接焊接 |
| CV Maximum | 0.86 |
| Flow Pattern | 直通（2 通） |
| Gasket | PTFE 涂层 316 不锈钢垫圈 |
| Maximum Temperature, °F (°C) | 200 (93) |
| Max Temperature Pressure Rating | 200°F @ 125 PSIG /93°C @ 8.6 BAR |
| Minimum Temperature, °F (°C) | -20 (-28) |
| Room Temperature Pressure Rating | 125 PSIG @ 100 °F /8.6 BAR @ 37 °C |
| Service Class | 常规 |
| Stem Tip Material | PCTFE |
| Stem Type | 圆锥形 |
| Surface Finish | 标准 |
| Testing | 按照 SCS-00020 进行氦气泄漏测试 |
| eClass (4.1) | 37010201 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37010201 |
| eClass (6.1) | 37010201 |
| UNSPSC (4.03) | 40141600 |
| UNSPSC (10.0) | 40141609 |
| UNSPSC (11.0501) | 40141609 |
| UNSPSC (13.0601) | 40141609 |
| UNSPSC (15.1) | 40141609 |
| UNSPSC (17.1001) | 40183102 |
