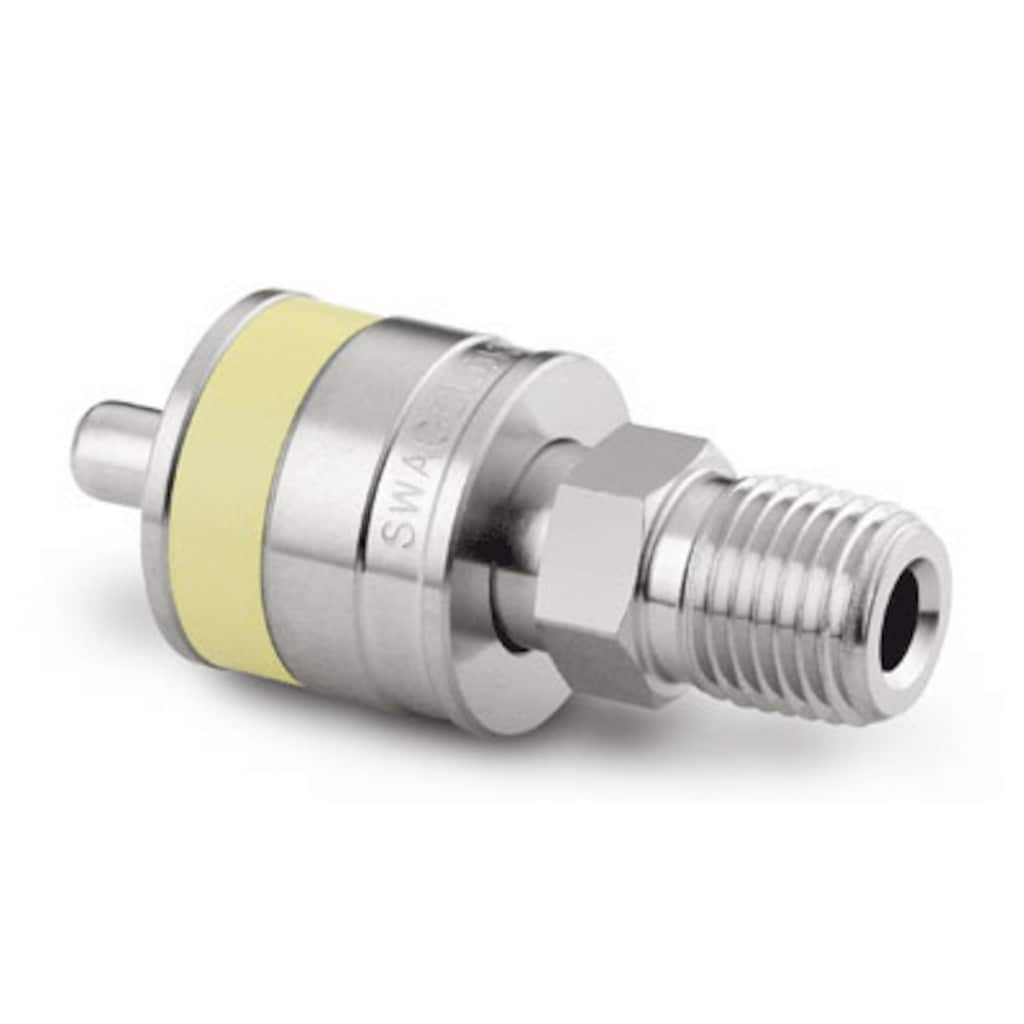

不带阀门的不锈钢仪表快速接头管茎，1/4 in. 外螺纹 NPT，橙色键（QC4 系列）
零部件号：SS-QC4-S-4PMK2
|
||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
规格
스템스웨즈락 퀵 코넥트는 연결을 자주 하고, 공기 유입과 유체 유출을 최소화해야 하는 애플리케이션에서 빠르고 쉽게 연결할 수 있게 해 줍니다. 登录或注册查看价格 联系人如果您对本产品有疑问，请联系您当地的授权销售与服务中心。他们还可以告诉您有关支持服务的信息，帮助您获得最大的投资收益。
安全的产品选择：
请务必查看全部产品目录内容以保证系统设计者和用户进行安全的产品选择。选择产品时，必须考虑总体系统设计以保证获得安全的、无故障的性能。功能、材料兼容性、充分的额定值、正确的安装、使用和维护是系统设计者和用户的重要责任。 警告: 请勿将世伟洛克产品或不符合工业设计标准的元件（包括世伟洛克卡套管接头端接）与其他制造商的产品或元件混用/互换。
|
目录
스템
Features: No twisting, turning, or wrenching necessary; Single-end shutoff, double-end shutoff, and full-flow models
Features: Step-by-step identification procedure for threads and end connections.
Warning: System pressure must not exceed 250 psig (17.2 bar) at 70°F (20°C) when coupling and uncoupling this product. When uncoupling single-end shutoff quick-connects, system pressure on stem side will vent to atmosphere.
规格
SS-QC4-S-4PMK2 — 不带阀门的不锈钢仪表快速接头管茎，1/4 in. 外螺纹 NPT，橙色键（QC4 系列）
| 属性 | 值 |
|---|---|
| 몸체 재질 | 316 不锈钢 |
| 세정 공정 | 标准清洁和包装 (SC-10) |
| 연결구 1 크기 | 1/4 in. |
| 연결구 1 종류 | 外螺纹 NPT |
| CV 최대 | 0.3 - 与标准或逆流本体连接时，0.4 - 与全流量本体连接时 |
| 윤활제 | 所有元件均无润滑剂 |
| O-링 재질 | 碳氟 FKM |
| 최대 온도에서의 체결된 압력 등급 | 250 PSIG @ 400 °F /17.2 BAR @ 204 °C |
| 실온에서의 체결된 압력 등급 | 3000 PSIG @ 70 °F /206 BAR @ 21 °C |
| 시리즈 | QC4 |
| 특수 슬리브 | 橙色带键套管 |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| eClass (10.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
类似产品
|
零部件号
|
阀体材料
|
接头 1 尺寸
|
接头 1 类型
|
接头 2 尺寸
|
接头 2 类型
|
|
|---|---|---|---|---|---|---|
| B-QC4-S-2PM | Brass | 1/8 in. | Male NPT | - | - | 查看产品 |
| B-QC4-S-400 | Brass | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| B-QC4-S-400K1 | Brass | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| B-QC4-S-400K3 | Brass | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| B-QC4-S-4PF | Brass | 1/4 in. | Female NPT | - | - | 查看产品 |
| B-QC4-S-4PM | Brass | 1/4 in. | Male NPT | - | - | 查看产品 |
| B-QC4-S-6M0 | Brass | 6 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| B-QC6-S-4PF | Brass | 1/4 in. | Female NPT | - | - | 查看产品 |
| B-QC6-S-4PM | Brass | 1/4 in. | Male NPT | - | - | 查看产品 |
| B-QC6-S-600 | Brass | 3/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-S-200 | 316 Stainless Steel | 1/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-S-2PF | 316 Stainless Steel | 1/8 in. | Female NPT | - | - | 查看产品 |
| SS-QC4-S-2PM | 316 Stainless Steel | 1/8 in. | Male NPT | - | - | 查看产品 |
| SS-QC4-S-400 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-S-400K1 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-S-400K2 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-S-400K3 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-S-400K4 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-S-400K5 | 316 Stainless Steel | 1/4 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC4-S-4FT | 316 Stainless Steel | 1/4 in. | Female ISO Tapered Thread | - | - | 查看产品 |
| SS-QC4-S-4MT | 316 Stainless Steel | 1/4 in. | Male ISO Tapered Thread | - | - | 查看产品 |
| SS-QC4-S-4PF | 316 Stainless Steel | 1/4 in. | Female NPT | - | - | 查看产品 |
| SS-QC4-S-4PM | 316 Stainless Steel | 1/4 in. | Male NPT | - | - | 查看产品 |
| SS-QC4-S-6M0 | 316 Stainless Steel | 6 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-S-10M0 | 316 Stainless Steel | 10 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-S-4PF | 316 Stainless Steel | 1/4 in. | Female NPT | - | - | 查看产品 |
| SS-QC6-S-4PM | 316 Stainless Steel | 1/4 in. | Male NPT | - | - | 查看产品 |
| SS-QC6-S-600 | 316 Stainless Steel | 3/8 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC6-S-6PF | 316 Stainless Steel | 3/8 in. | Female NPT | - | - | 查看产品 |
| SS-QC6-S-6PM | 316 Stainless Steel | 3/8 in. | Male NPT | - | - | 查看产品 |
| SS-QC8-S-12M0 | 316 Stainless Steel | 12 mm | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC8-S-810 | 316 Stainless Steel | 1/2 in. | Swagelok® Tube Fitting | - | - | 查看产品 |
| SS-QC8-S-8PF | 316 Stainless Steel | 1/2 in. | Female NPT | - | - | 查看产品 |
| SS-QC8-S-8PM | 316 Stainless Steel | 1/2 in. | Male NPT | - | - | 查看产品 |
