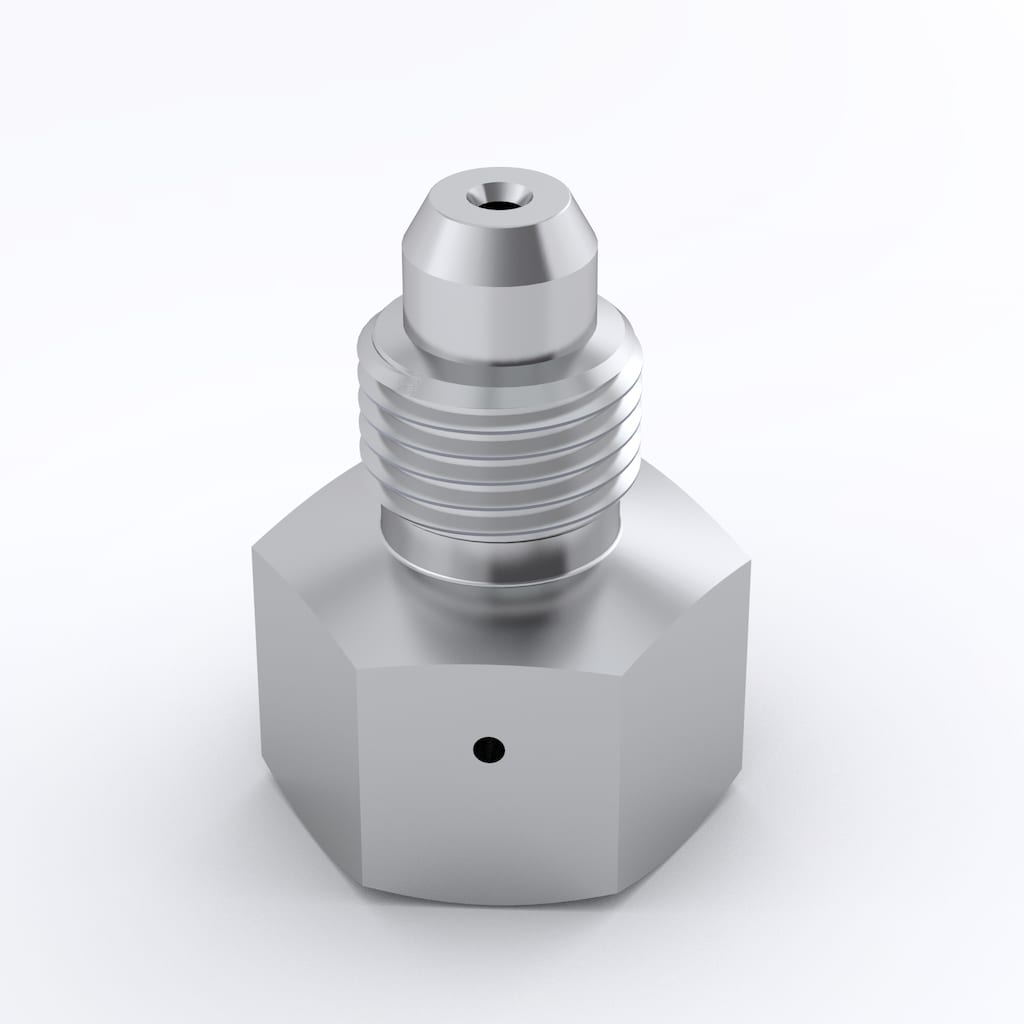

Replaceable Seat for Stainless Steel High Pressure Angle-Pattern Needle Valve, 9/16-18 Female Straight Thread
Log in or Register to view price
Catalogs
Seat for High Pressure Needle Valves, Sno-Trik 410, 445, 645, 945
Select from a variety of spare parts and accessories for your Swagelok valve.
Swagelok® offers medium- and high-pressure fittings, tubing, valves, and related accessories with temperatures up 1000°F (537°C), pressure ratings up to 60 000 psig (4134 bar) in sizes ranging from 1/4 to to 1 in. for medium-pressure products and 1/4 to 9/16 in. for high-pressure products. NACE® MR0175/ISO15156 compliance is available.
Specifications
| Attribute | Value |
|---|---|
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| For Product | 445 Snow Trik |
| eClass (4.1) | 37010631 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37010203 |
| eClass (6.1) | 37010203 |
| UNSPSC (4.03) | 40141718 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (17.1001) | 40141602 |
Resources
Drawings
Two-dimensional renderings are available for this product. Download the CAD file.
Three-dimensional renderings are available for this product. Download the CAD file.
Sales drawings are available for this product. Download the files.
Similar Products
|
Part #
|
Body Material
|
Connection 1 Size
|
Connection 1 Type
|
Connection 2 Size
|
Connection 2 Type
|
|
|---|---|---|---|---|---|---|
| K-440C-3A-4-1 | - | - | - | - | - | View Product |
| SS-410-RS-4F | 316 Stainless Steel | - | - | - | - | View Product |
| SS-645-RS-64F | - | - | - | - | - | View Product |
