황동 원피스 포펫 체크 밸브, 조절 가능 압력, 1/4인치 MNPT, 3~50psig(0.21~3.5bar)
Part #: B-4CPA2-3
|
||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specifications
可调压力在一般用途和高纯度应用中凭借可提供一系列可调节和固定开启压力的世伟洛克单向阀控制回流。 Log in or Register to view price ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Warning: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants.
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warning: Les composants qui ne sont pas régis par une norme, comme les raccords pour tubes Swagelok, ne doivent jamais être mélangés/intervertis avec ceux d’autres fabricants.
황동 원피스 포펫 체크 밸브, 조절 가능 압력, 1/4인치 MNPT, 3~50psig(0.21~3.5bar)
Log in or Register to view price
Catalogs
可调压力
工作压力达 6000 psig (413 bar); 可调节和固定的开启压力; 多种端接; 316 不锈钢和黄铜材料
Features: Step-by-step identification procedure for threads and end connections.
逆时针旋转以松开锁紧螺丝; 将六角扳手插入调节螺丝; 顺时针同时旋转两个螺丝将增大开启压力，逆时针旋转将减 小开启压力; 将六角扳手抽出，仅插入锁紧螺丝并且顺时针旋转以锁紧.
安装尺寸大于1in.或者25mm的世伟洛克卡套管接头时请遵循本规范。
This document specifies guidelines used by Swagelok® Company and its suppliers to ensure compliance with product cleanliness requirements as stated in ASTM G93 Level C. Application of the document is limited to wetted system components. This document must be used in conjunction with product catalogs, technical bulletins, and reports.
Swagelok® Specification SC-10 defines the cleaning, lubrication, assembly, and packaging requirements for standard Swagelok products and describes practices used to meet these requirements.
Valve sizing often is described by the nominal size of the end connections, but a more important measure is the flow that the valve can provide. And determining flow through a valve can be simple.
Pages 1-3. Features: installation in high-pressure applications and high safety-factor systems.
Specifications

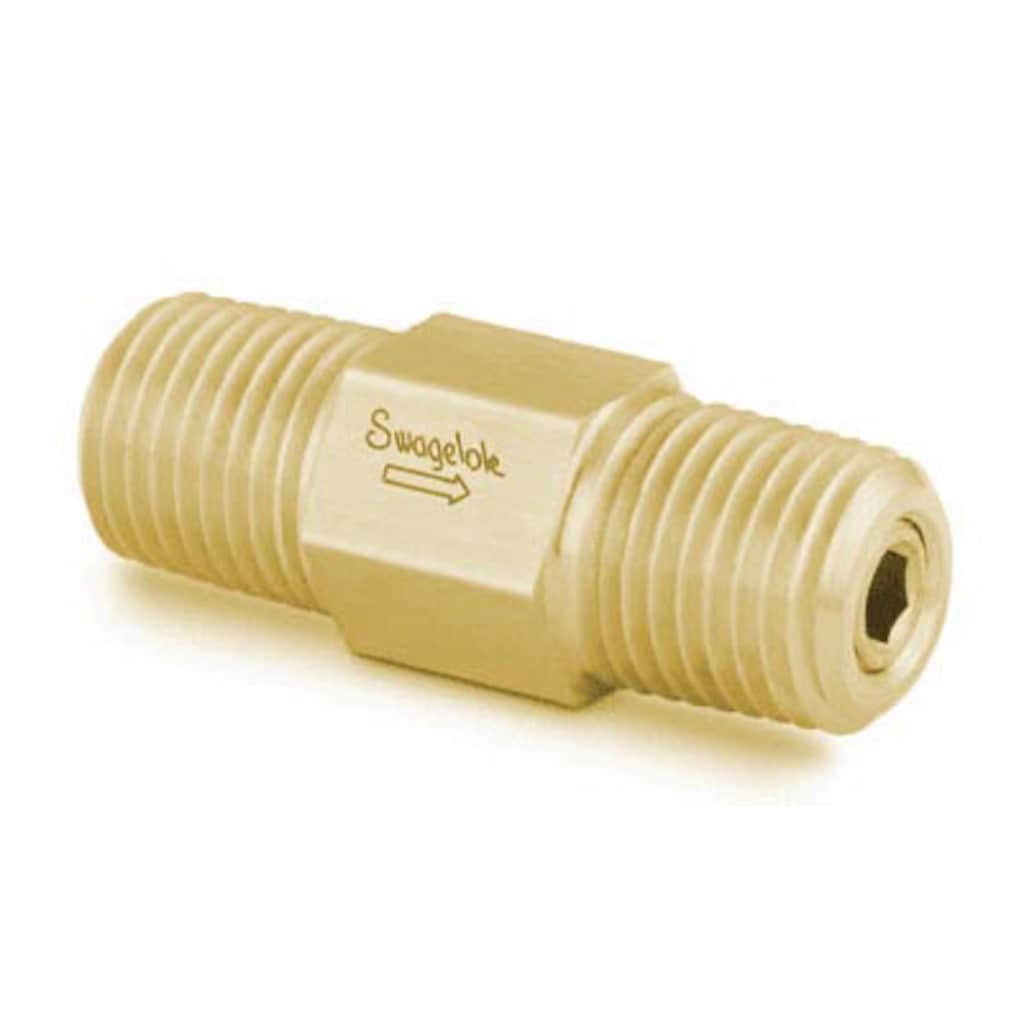

B-4CPA2-3 — 황동 원피스 포펫 체크 밸브, 조절 가능 압력, 1/4인치 MNPT, 3~50psig(0.21~3.5bar)
| Attribute | Value |
|---|---|
| 阀体材料 | Laiton |
| 清洁工艺 | Nettoyage et conditionnement standard (SC-10) |
| 接头 1 尺寸 | 1/4 po |
| 接头 1 类型 | Filetage NPT mâle |
| 接头 2 尺寸 | 1/4 po |
| 接头 2 类型 | Filetage NPT mâle |
| 开启压力 | 0,21 à 3,5 bar (0,021 à 0,35 MPa, 3 à 50 psi) |
| Cv 最大值 | 0.35 |
| O 型圈材料 | Buna N |
| 室温压力额定值 | 3000 PSIG À 100°F / 206 BAR À 37°C |
| 表面光洁度 | Standard |
| 测试 | Pas de test optionnel |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27300601 |
| eClass (6.1) | 27300601 |
| eClass (10.1) | 27300601 |
| UNSPSC (4.03) | 40141622 |
| UNSPSC (10.0) | 40141641 |
| UNSPSC (11.0501) | 40141641 |
| UNSPSC (13.0601) | 40141641 |
| UNSPSC (15.1) | 40141641 |
| UNSPSC (17.1001) | 40183101 |
