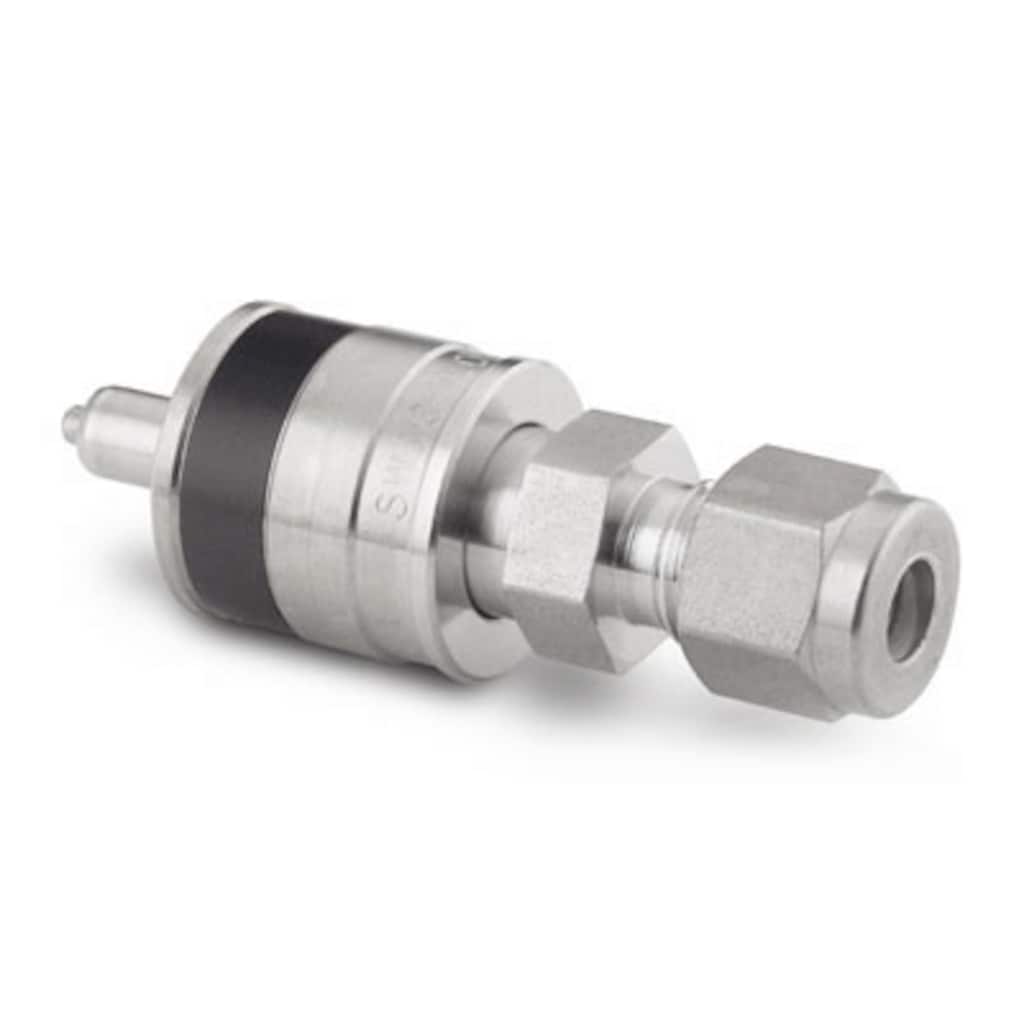

밸브가 있는 스테인리스강 계장용 퀵 코넥트 스템, 6mm 스웨즈락 튜브 피팅, 검정색 키(QC4 시리즈)
零部件号：SS-QC4-D-6M0K1
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
规格
DESO StemsMake quick, easy connections with Swagelok quick connects for applications requiring frequent connections, minimal air inclusion and minimal spillage. 登录或注册查看价格 ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Sichere Produktauswahl:
Der Kataloginhalt muss ganz durchgelesen werden, um sicherzustellen, dass der Systementwickler und der Benutzer eine sichere Produktauswahl treffen. Bei der Auswahl von Produkten muss die gesamte Systemanordnung berücksichtigt werden, um eine sichere, störungsfreie Funktion zu gewährleisten. Der Systemdesigner und der Benutzer sind für Funktion, Materialverträglichkeit, entsprechende Leistungsdaten und Einsatzgrenzen sowie für die vorschriftsmäßige Handhabung, den Betrieb und die Wartung verantwortlich. 警告: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
|
Der Kataloginhalt muss ganz durchgelesen werden, um sicherzustellen, dass der Systementwickler und der Benutzer eine sichere Produktauswahl treffen. Bei der Auswahl von Produkten muss die gesamte Systemanordnung berücksichtigt werden, um eine sichere, störungsfreie Funktion zu gewährleisten. Der Systemdesigner und der Benutzer sind für Funktion, Materialverträglichkeit, entsprechende Leistungsdaten und Einsatzgrenzen sowie für die vorschriftsmäßige Handhabung, den Betrieb und die Wartung verantwortlich.
警告: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
目录
DESO Stems
Features: Step-by-step identification procedure for threads and end connections.
规格
SS-QC4-D-6M0K1 — 밸브가 있는 스테인리스강 계장용 퀵 코넥트 스템, 6mm 스웨즈락 튜브 피팅, 검정색 키(QC4 시리즈)
| 属性 | 值 |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 6 mm |
| Connection 1 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.2 - If coupled with a standard or reverse flow body |
| Lubricant | Dow Corning 111 |
| O-Ring Material | Fluorocarbon FKM |
| Pressure Rating Coupled at Max Temp | 250 PSIG @ 400 °F /17.2 BAR @ 204 °C |
| Pressure Rating Coupled at Room Temp | 3000 PSIG @ 70 °F /206 BAR @ 21 °C |
| Pressure Rating Uncoupled at Room Temp | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Pressure/Temp Rating (Coupling and Uncoupling) | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Series | QC4 |
| Special Sleeve | Black Keyed Sleeve |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| eClass (10.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
类似产品
|
零部件号
|
阀体材料
|
接头 1 尺寸
|
接头 1 类型
|
接头 2 尺寸
|
接头 2 类型
|
|
|---|---|---|---|---|---|---|
| B-QC4-D-400 | 黄铜 | 1/4 in. | 世伟洛克® 卡套管接头 | - | - | 查看产品 |
| B-QC4-D-4PF | 黄铜 | 1/4 in. | 内螺纹 NPT | - | - | 查看产品 |
| B-QC4-D-4PM | 黄铜 | 1/4 in. | 外螺纹 NPT | - | - | 查看产品 |
| B-QC4-D-6M0 | 黄铜 | 6 mm | 世伟洛克® 卡套管接头 | - | - | 查看产品 |
| B-QC6-D-4PF | 黄铜 | 1/4 in. | 内螺纹 NPT | - | - | 查看产品 |
| B-QC6-D-4PM | 黄铜 | 1/4 in. | 外螺纹 NPT | - | - | 查看产品 |
| B-QC6-D-600 | 黄铜 | 3/8 in. | 世伟洛克® 卡套管接头 | - | - | 查看产品 |
| B-QC6-D-6PM | Laiton | 3/8 po | Filetage NPT mâle | - | - | 查看产品 |
| B-QC8-D-810 | Laiton | 1/2 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| B-QC8-D-8PF | Laiton | 1/2 po | Filetage NPT femelle | - | - | 查看产品 |
| B-QC8-D-8PM | Laiton | 1/2 po | Filetage NPT mâle | - | - | 查看产品 |
| SS-QC4-D-200 | Acier inoxydable 316 | 1/8 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC4-D-2PF | Acier inoxydable 316 | 1/8 po | Filetage NPT femelle | - | - | 查看产品 |
| SS-QC4-D-2PM | Acier inoxydable 316 | 1/8 po | Filetage NPT mâle | - | - | 查看产品 |
| SS-QC4-D-400 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC4-D-400K1 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC4-D-400K2 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC4-D-400K3 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC4-D-400K4 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC4-D-400K5 | Acier inoxydable 316 | 1/4 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC4-D-400KZ | Acier inoxydable 316 | 1/4 po | Raccord pour tube Swagelok® | - | - | 查看产品 |
| SS-QC4-D-4MT | Acier inoxydable 316 | 1/4 po | Filetage conique ISO mâle | - | - | 查看产品 |
| SS-QC4-D-4PF | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | 查看产品 |
| SS-QC4-D-4PFK5 | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | 查看产品 |
| SS-QC4-D-4PFKZ | Acier inoxydable 316 | 1/4 po | filetage NPT femelle 1/8 po | - | - | 查看产品 |
| SS-QC4-D-4PM | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | 查看产品 |
| SS-QC4-D-4PMK2 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | 查看产品 |
| SS-QC4-D-4PMK3 | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | 查看产品 |
| SS-QC4-D-4PMKZ | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | 查看产品 |
| SS-QC4-D-6M0 | Acier inoxydable 316 | 6 mm | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC6-D-10M0 | Acier inoxydable 316 | 10 mm | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC6-D-4PF | Acier inoxydable 316 | 1/4 po | Filetage NPT femelle | - | - | 查看产品 |
| SS-QC6-D-4PM | Acier inoxydable 316 | 1/4 po | Filetage NPT mâle | - | - | 查看产品 |
| SS-QC6-D-600 | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC6-D-600K1 | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC6-D-600K2 | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC6-D-600K3 | Acier inoxydable 316 | 3/8 po | Raccord Swagelok® pour tubes | - | - | 查看产品 |
| SS-QC6-D-6PF | Acier inoxydable 316 | 3/8 po | Filetage NPT femelle | - | - | 查看产品 |
| SS-QC6-D-6PM | Acier inoxydable 316 | 3/8 po | Filetage NPT mâle | - | - | 查看产品 |
| SS-QC6-DC-6HC | 316 不锈钢 | 3/8 in. | 软管接头 | - | - | 查看产品 |
| SS-QC8-D-12M0 | 316 不锈钢 | 12 mm | 世伟洛克® 卡套管接头 | - | - | 查看产品 |
| SS-QC8-D-810 | 316 不锈钢 | 1/2 in. | 世伟洛克® 卡套管接头 | - | - | 查看产品 |
| SS-QC8-D-810K1 | 316 不锈钢 | 1/2 in. | 世伟洛克® 卡套管接头 | - | - | 查看产品 |
| SS-QC8-D-8MT | 316 不锈钢 | 1/2 in. | ISO 锥形外螺纹 | - | - | 查看产品 |
| SS-QC8-D-8PF | 316 不锈钢 | 1/2 in. | 内螺纹 NPT | - | - | 查看产品 |
| SS-QC8-D-8PM | 316 不锈钢 | 1/2 in. | 外螺纹 NPT | - | - | 查看产品 |
