316 不锈钢 VCR 面密封接头，变径转换接头本体，1/8 in. VCR x 1/4 in. 内螺纹 VCR |
||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Технические характеристики
直通使用世伟洛克 VCR® 金属垫片面密封，可以在保持金属对金属密封高纯性的同时实现密封连接。 Войдите или зарегистрируйтесь, чтобы просмотреть цену ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. Предупреждение: 请勿将世伟洛克产品或不符合工业设计标准的元件（包括世伟洛克卡套管接头端接）与其他制造商的产品或元件混用/互换。
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Предупреждение: 请勿将世伟洛克产品或不符合工业设计标准的元件（包括世伟洛克卡套管接头端接）与其他制造商的产品或元件混用/互换。
316 不锈钢 VCR 面密封接头，变径转换接头本体，1/8 in. VCR x 1/4 in. 内螺纹 VCR
Войдите или зарегистрируйтесь, чтобы просмотреть цену
Каталоги
直通
使用世伟洛克 VCR® 金属垫片面密封，可以在保持金属对金属密封高纯性的同时实现密封连接。
1/16 至 1 in. 和 6 至 18 mm 口径; 高纯度不锈钢; 独创性的设计，权威性的 VCR 商标
Features: Step-by-step identification procedure for threads and end connections.
此文件对世伟洛克公司生产用于光伏行业的不锈钢产品进行了规定。此文件必须与产品目录、技术公告及报告一起使用，这样产品信 息才完整。此文件的应用仅限于与介质接触的系统部件。
This document specifies guidelines used by Swagelok® Company and its suppliers to ensure compliance with product cleanliness requirements as stated in ASTM G93 Level C. Application of the document is limited to wetted system components. This document must be used in conjunction with product catalogs, technical bulletins, and reports.
Swagelok® Specification SC-10 defines the cleaning, lubrication, assembly, and packaging requirements for standard Swagelok products and describes practices used to meet these requirements.
Scope: This document specificies guidelines used by Swagelok® Company for producing ultrahigh-purity (UHP) electropolished stainless steel products as well as ultrahigh-purity plastic products. This document must be used in conjunction with product catalogs, technical bulletins, and reports for complete product information.
Технические характеристики

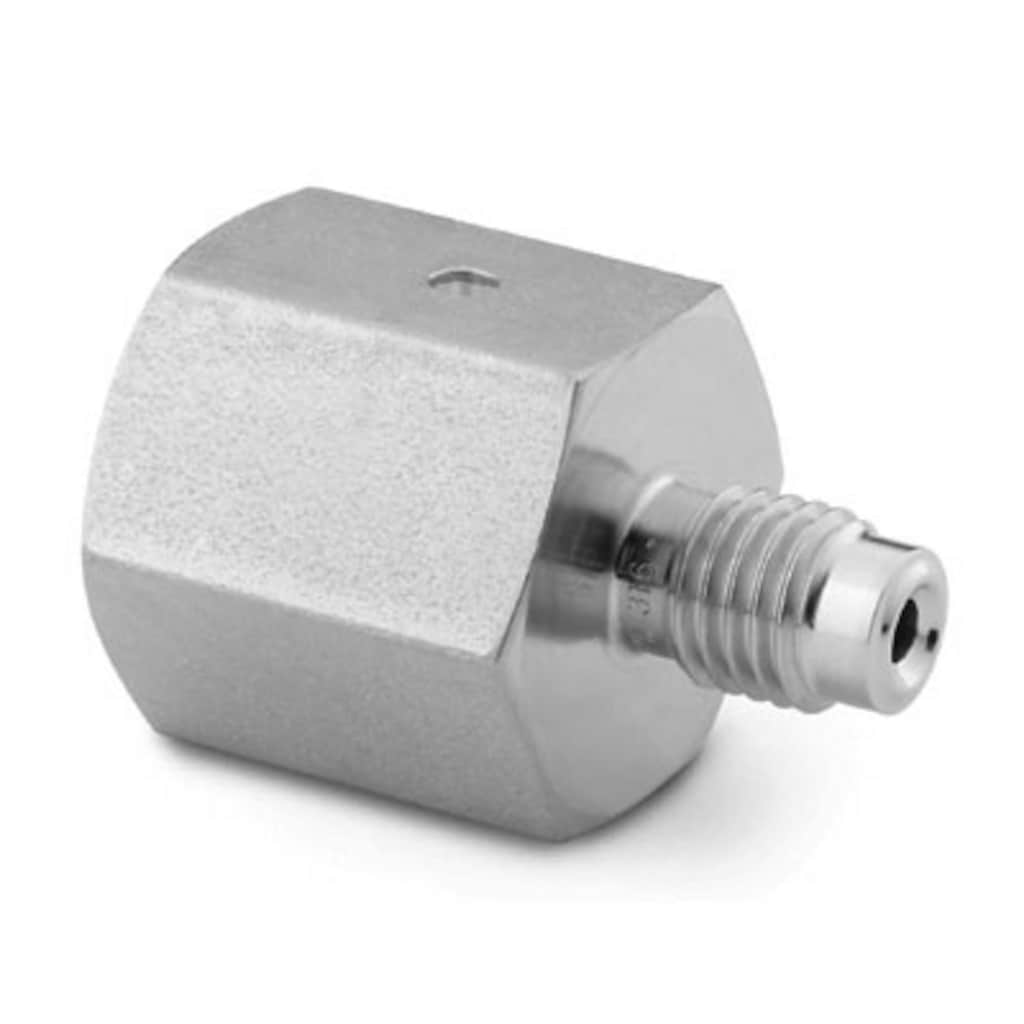

SS-2-VCR-7-4VCRF — 316 不锈钢 VCR 面密封接头，变径转换接头本体，1/8 in. VCR x 1/4 in. 内螺纹 VCR
| Атрибут | Значение |
|---|---|
| 阀体材料 | 316 不锈钢 |
| 清洁工艺 | 标准清洁和包装 (SC-10) |
| 接头 1 尺寸 | 1/8 in. |
| 接头 1 类型 | VCR® 金属垫片面密封管接头 |
| 接头 2 尺寸 | 1/4 in. |
| 接头 2 类型 | 内螺纹 VCR® 金属垫圈面密封 |
| 流量限制器 | 否 |
| eClass (4.1) | 37030701 |
| eClass (5.1.4) | 37020590 |
| eClass (6.0) | 37020514 |
| eClass (6.1) | 37020590 |
| eClass (10.1) | 37020590 |
| UNSPSC (4.03) | 40141724 |
| UNSPSC (10.0) | 40142613 |
| UNSPSC (11.0501) | 40142615 |
| UNSPSC (13.0601) | 40183112 |
| UNSPSC (15.1) | 40183112 |
| UNSPSC (17.1001) | 40183110 |
Ресурсы
Чертежи
Для этого изделия есть двухмерные модели. Загрузить файл САПР.
Для этого изделия есть трехмерные модели. Загрузить файл САПР.
Для этого изделия есть рекламные чертежи. Загрузить файлы.
Похожие изделия
|
Код изделия
|
Материал корпуса
|
Размер соединения 1
|
Тип соединения 1
|
Размер соединения 2
|
Тип соединения 2
|
|
|---|---|---|---|---|---|---|
| SS-12-VCR-7-12 | 316 不锈钢 | 3/4 in. | VCR® 金属垫片面密封管接头 | 3/4 in. | 内螺纹 NPT | Просмотр изделия |
| SS-4-VCR-7-2 | 316 不锈钢 | 1/4 in. | VCR® 金属垫片面密封管接头 | 1/8 in. | 内螺纹 NPT | Просмотр изделия |
| SS-4-VCR-7-2VCRF | 316 不锈钢 | 1/4 in. | VCR® 金属垫片面密封管接头 | 1/8 in. | 内螺纹 VCR® 金属垫圈面密封 | Просмотр изделия |
| SS-4-VCR-7-4 | 316 不锈钢 | 1/4 in. | VCR® 金属垫片面密封管接头 | 1/4 in. | 内螺纹 NPT | Просмотр изделия |
| SS-4-VCR-7-8VCRF | 316 不锈钢 | 1/4 in. | VCR® 金属垫片面密封管接头 | 1/2 in. | 内螺纹 VCR® 金属垫圈面密封 | Просмотр изделия |
| SS-8-VCR-7-4VCRF | 316 不锈钢 | 1/2 in. | VCR® 金属垫片面密封管接头 | 1/4 in. | 内螺纹 VCR® 金属垫圈面密封 | Просмотр изделия |
| SS-8-VCR-7-6 | 316 不锈钢 | 1/2 in. | VCR® 金属垫片面密封管接头 | 3/8 in. | 内螺纹 NPT | Просмотр изделия |
| SS-8-VCR-7-8 | 316 不锈钢 | 1/2 in. | VCR® 金属垫片面密封管接头 | 1/2 in. | 内螺纹 NPT | Просмотр изделия |
