带阀门的不锈钢仪表快速接头管茎，0.2 Cv，1/4 in. 外螺纹 NPT，绿色键 |
||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
规格
Штоки DESOОбеспечьте быстрое и простое соединение с помощью быстроразъемных соединений Swagelok для систем, в которых требуются частые соединения, минимальное количество включений воздуха и минимум проливов. 登录或注册查看价格 ContactIf you have questions about this product, please contact your local authorized sales and service center. They can also tell you about supporting services to help you get the most out of your investment.
Safe Product Selection
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user. 警告: Запрещается совместное использование и замена продуктов или компонентов Swagelok, на производство которых не распространяются отраслевые стандарты проектирования (в том числе торцевых соединений трубных обжимных фитингов Swagelok), продуктами или компонентами других производителей.
|
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
警告: Запрещается совместное использование и замена продуктов или компонентов Swagelok, на производство которых не распространяются отраслевые стандарты проектирования (в том числе торцевых соединений трубных обжимных фитингов Swagelok), продуктами или компонентами других производителей.
目录
Штоки DESO
Обеспечьте быстрое и простое соединение с помощью быстроразъемных соединений Swagelok для систем, в которых требуются частые соединения, минимальное количество включений воздуха и минимум проливов.
Features: No twisting, turning, or wrenching necessary; Single-end shutoff, double-end shutoff, and full-flow models
Features: Step-by-step identification procedure for threads and end connections.
Good practices for operation of Swagelok quick-connects.
规格

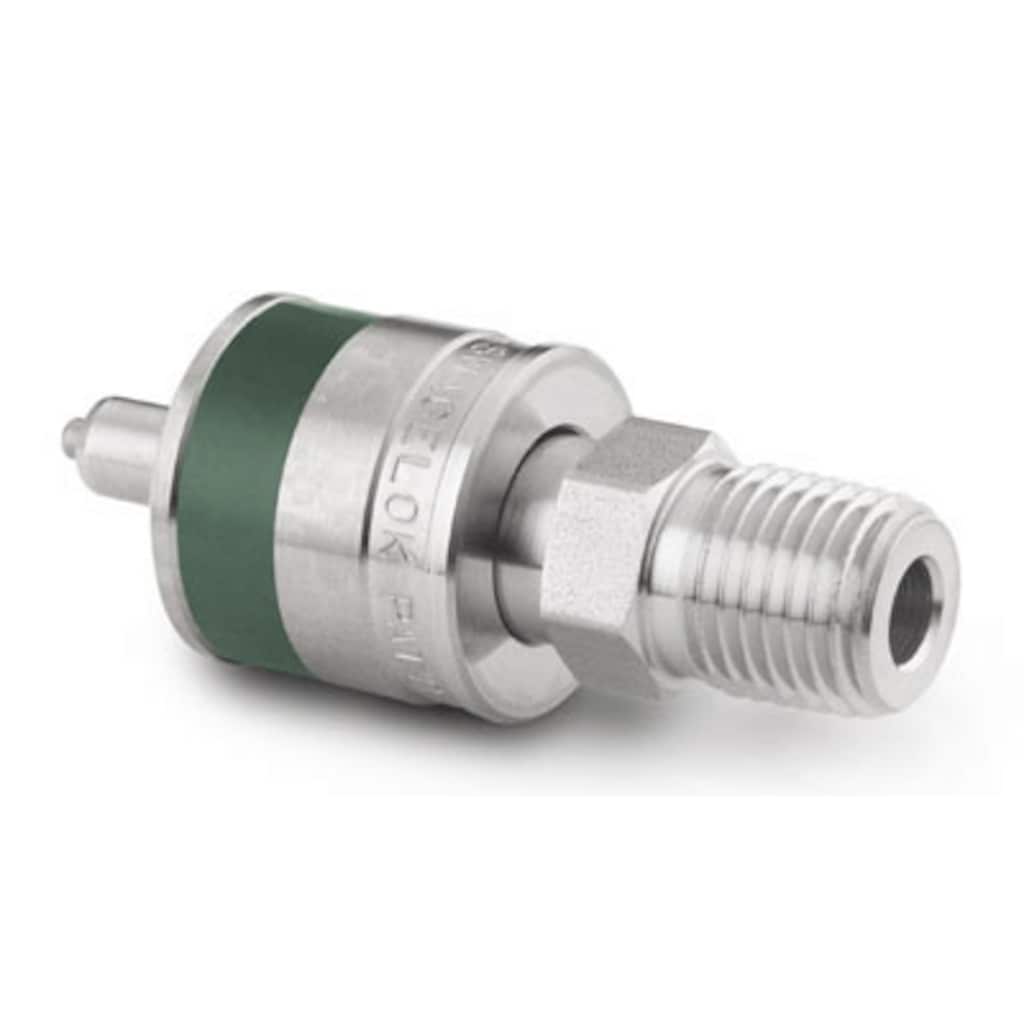

SS-QC4-D-4PMK3 — 带阀门的不锈钢仪表快速接头管茎，0.2 Cv，1/4 in. 外螺纹 NPT，绿色键
| 属性 | 值 |
|---|---|
| Материал корпуса | Нержавеющая сталь 316 |
| Процедура очистки | Стандартная инструкция по очистке и упаковке (SC-10) |
| Размер соединения 1 | 1/4 дюйма |
| Тип соединения 1 | Наруж. резьба NPT |
| Максимальный коэффициент расхода (Cv) | 0,2 — при соединении с обычным корпусом или корпусом с обратным потоком |
| Смазка | Смазка Dow Corning 111 |
| Материал уплотнительного кольца | фторуглерод FKM |
| Номинальные параметры давления с привязкой к макс. температуре | 250 фунтов на кв. дюйм, ман. при 400 °F / 17,2 бар при 204 °C |
| Номинальные параметры давления с привязкой к комнатной температуре | 3000 фунтов на кв. дюйм, ман. при 70 °F / 206 бар при 21 °C |
| Номинальные параметры давления без привязки к комнатной температуре | 250 фунтов на кв. дюйм, ман. при 70 °F / 17,2 бар при 21 °C |
| Номинальные параметры давления / температуры (с привязкой и без привязки) | 250 фунтов на кв. дюйм, ман. при 70 °F / 17,2 бар при 21 °C |
| Серия | QC4 |
| Специальная втулка | Зеленая кодировочная втулка |
| eClass (4.1) | 37110302 |
| eClass (5.1.4) | 37110302 |
| eClass (6.0) | 37020500 |
| eClass (6.1) | 37020500 |
| eClass (10.1) | 37020500 |
| UNSPSC (4.03) | 31163101 |
| UNSPSC (10.0) | 27121701 |
| UNSPSC (11.0501) | 27121701 |
| UNSPSC (13.0601) | 27121701 |
| UNSPSC (15.1) | 27121701 |
| UNSPSC (17.1001) | 27121701 |
